Tourmaline Tongs
   Tourmaline crystals are doubly refracting; an incoming ray is split into an ordinary and an extra-ordinary ray. which are polarized at right angles to each other. However, the E-ray is rapidly absorbed, so if the crystal is a few millimeters thick, the transmitted light is linearly polarized.

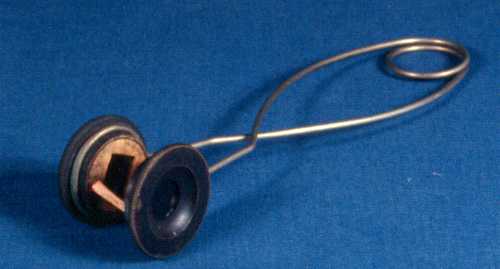

   The tongs have a tourmaline crystal in each half, mounted with the transmission axes at right angles to each other. Specimens, such as thin plates of mica or plates stressed by a glass press are slipped between the two halves of the tongs, and observed by holding the system up to the eye; tourmaline does not transmit light very well. The device was invented by Jean-Baptiste Biot (1774-1862).

Smithsonian Institution
